Integrations

Integrations are visual data flows inside a workspace. Each integration has a flow designer (step graph), run history, and optional API triggers.

Integrations list

Navigate to /workspaces/:workspaceId/integrations.

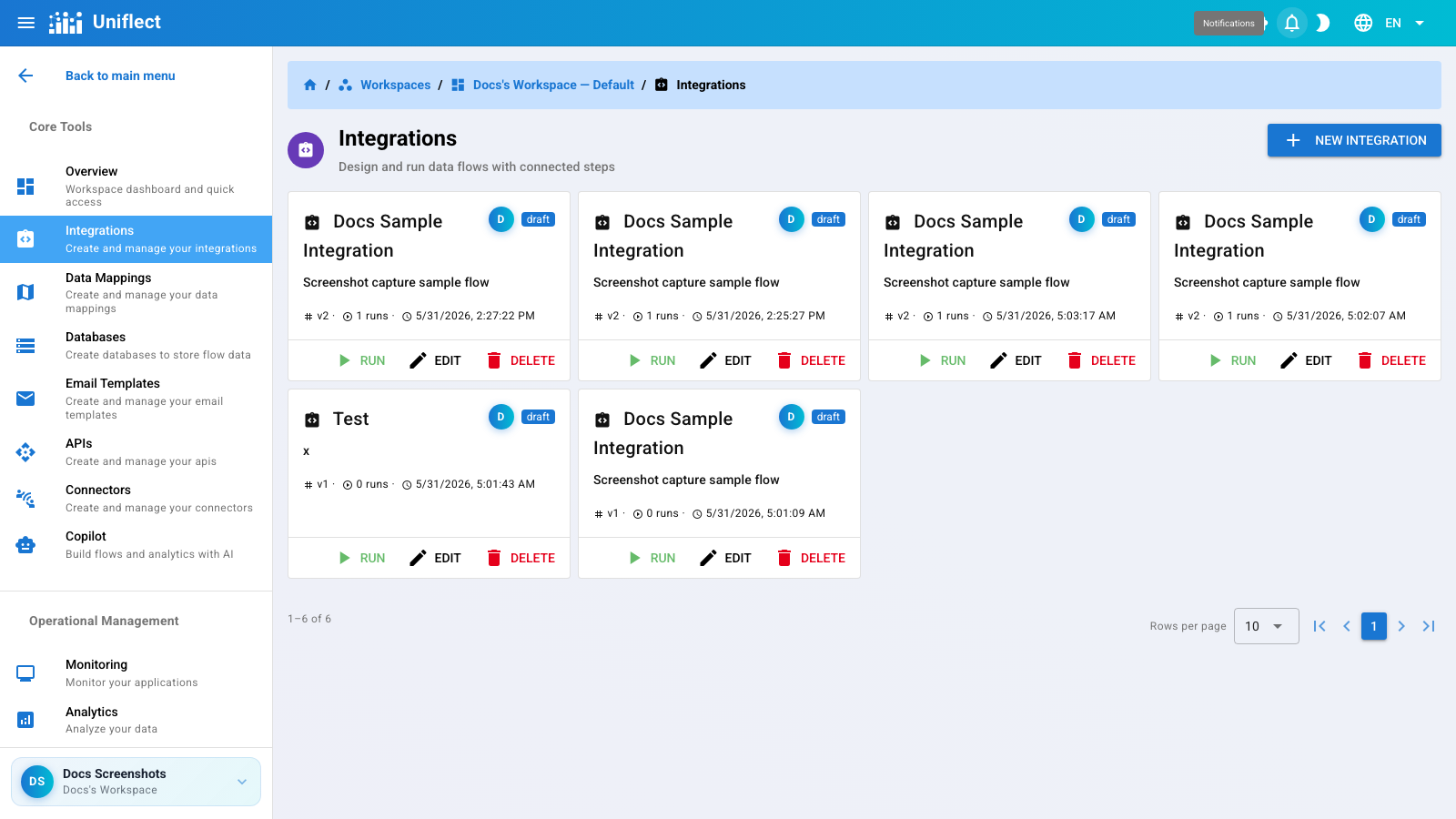

Integrations list — all flows in the workspace with status and last run info.

Create an integration

1. Click Create integration.
2. Enter a Name and optional Description.
3. Click Create.

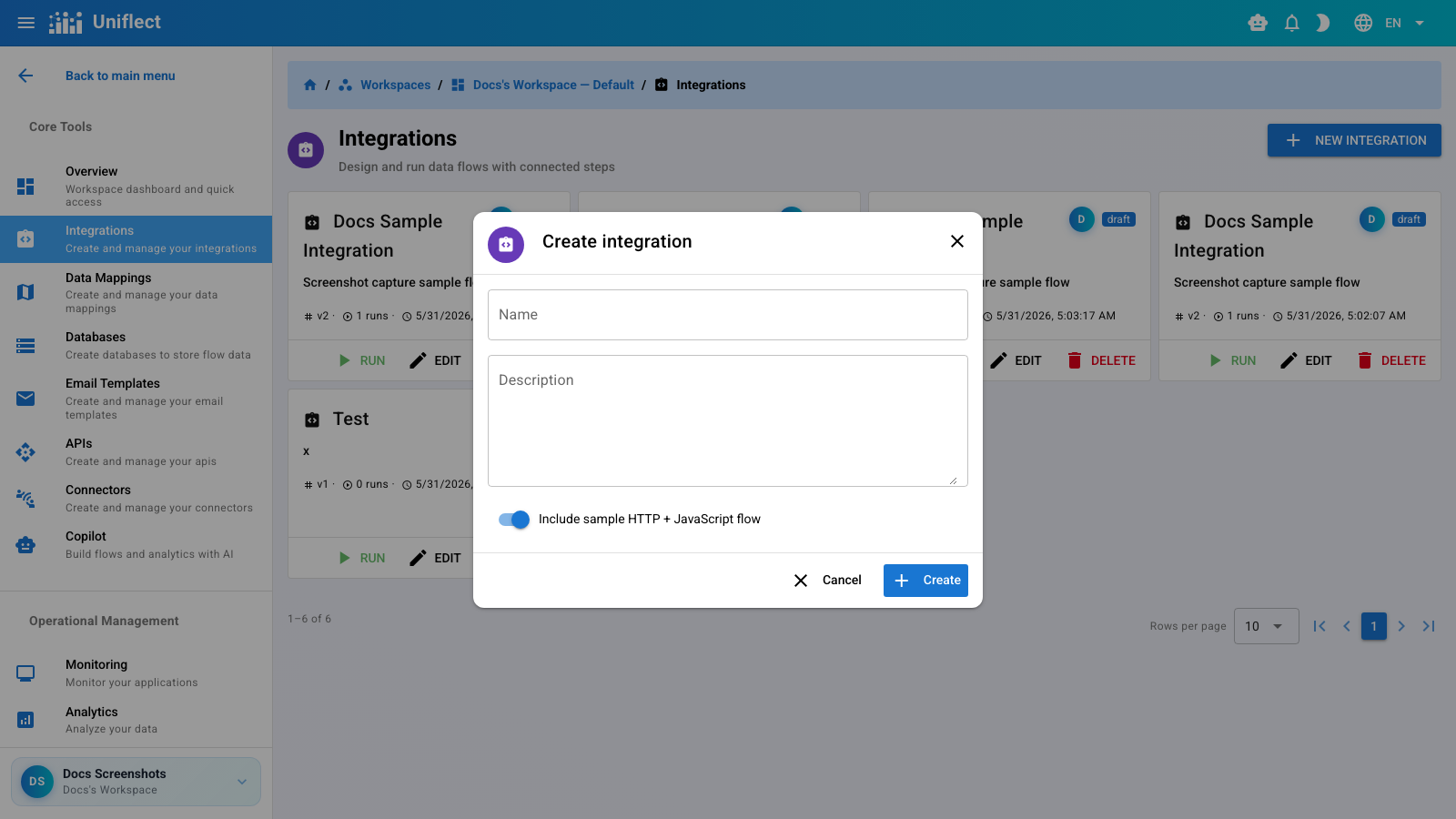

Create integration — name your flow before opening the designer.

You are redirected to the integration detail page with an empty flow containing a Trigger step.

Integration detail

Route: /workspaces/:workspaceId/integrations/:integrationId

The detail page has two tabs:

Tab	Purpose
Designer	Visual flow canvas and step configuration
Runs	Run history with links to run detail

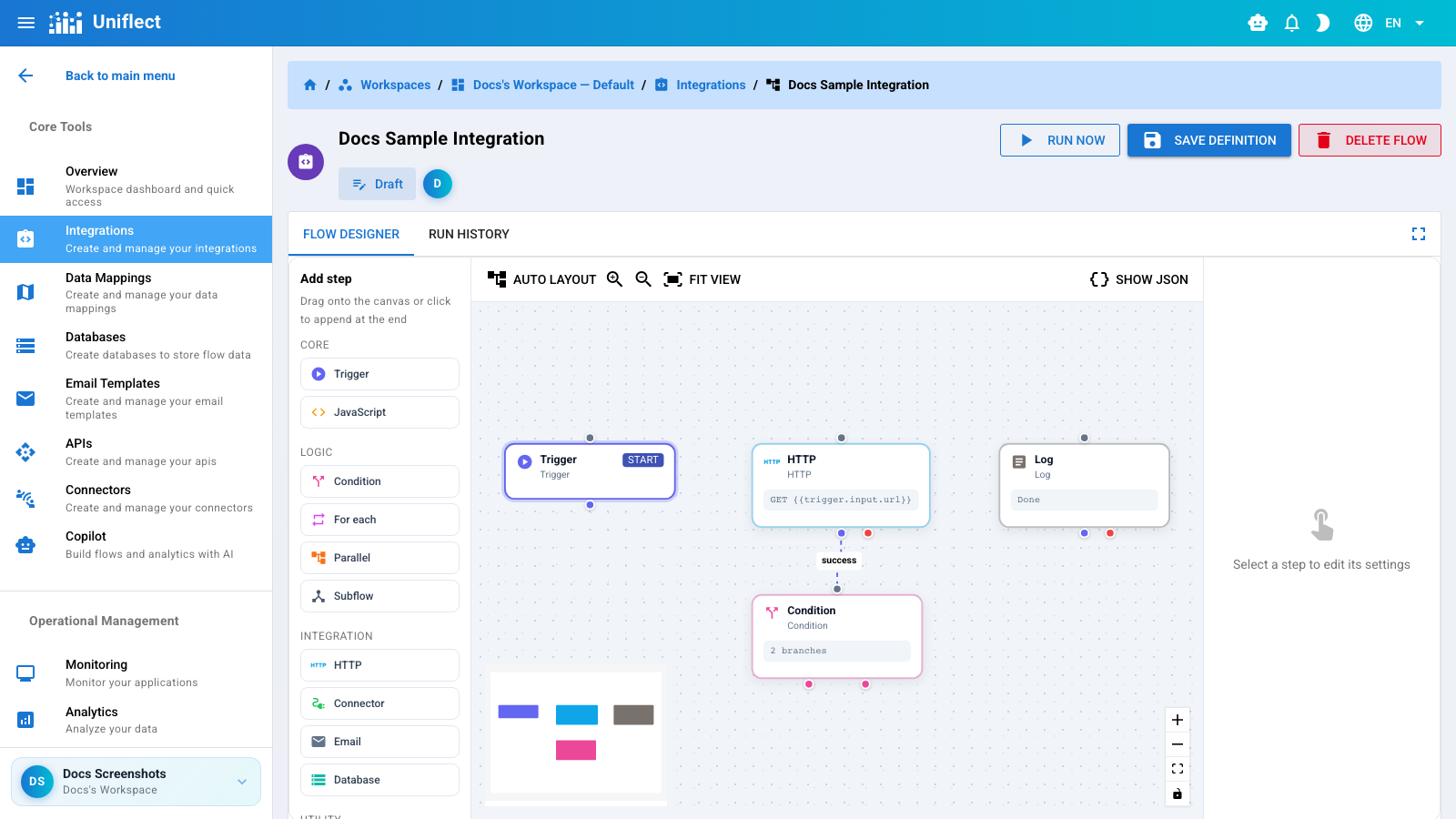

Flow designer — palette (left), canvas (center), step config (right).

Designer toolbar

Action	Description
Save	Persist the current flow definition
Run now	Save and execute the flow with trigger input
Auto-layout	Arrange nodes using dagre layout
Zoom	Zoom in/out and fit view
JSON preview	Toggle raw flow definition JSON

Flow designer areas

1. Palette — drag step types onto the canvas (grouped: Core, Logic, Integration, Utility)
2. Canvas — Vue Flow graph with nodes and edges
3. Config panel — edit the selected step's settings
4. JSON preview — inspect the serialized definition

Runs tab

Switch to Runs to see execution history.

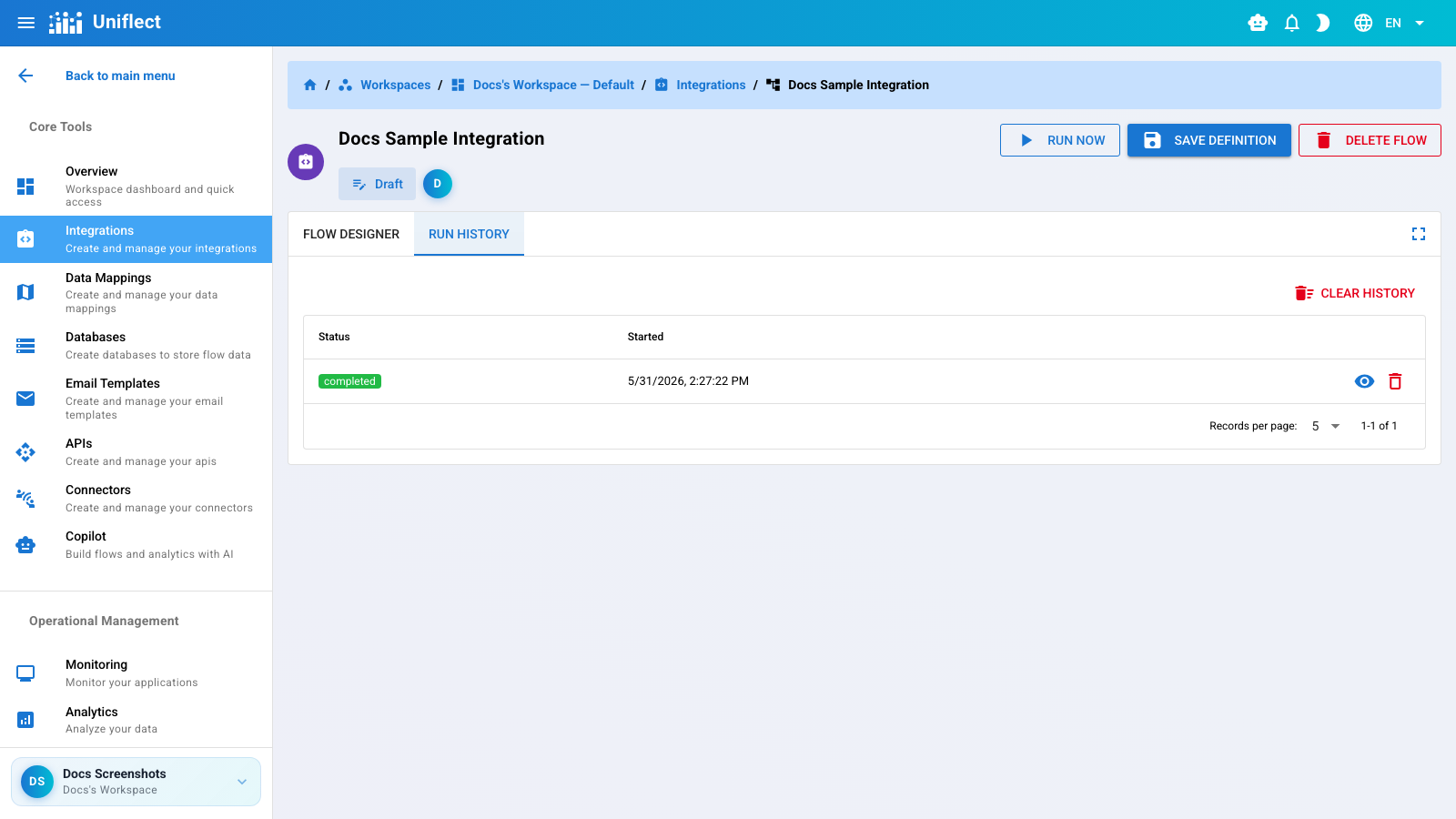

Runs tab — status, duration, and timestamp for each execution.

Click a run to open the run detail page.

Run detail

Route: .../integrations/:integrationId/runs/:runId

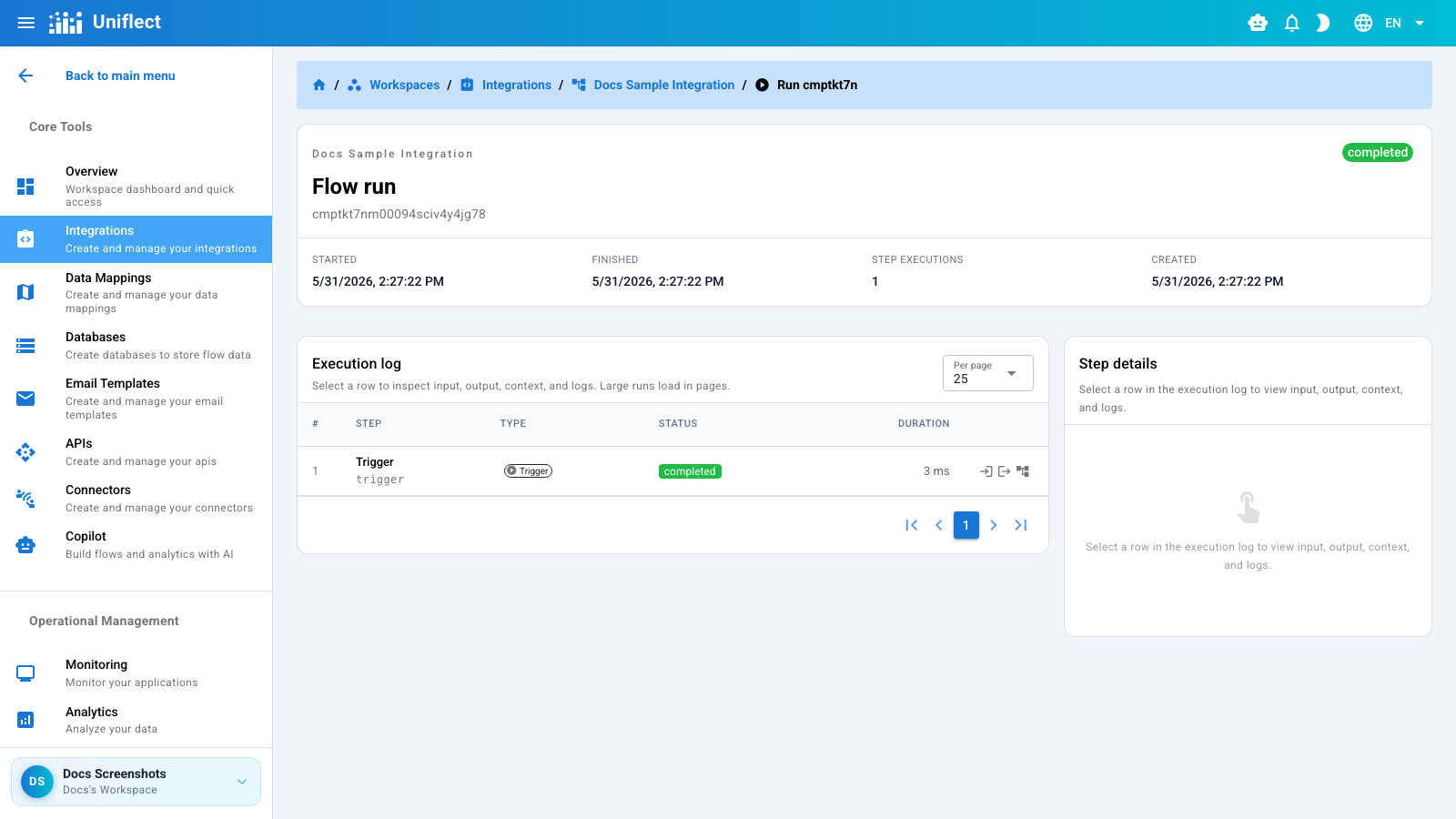

Run detail — step-by-step input, output, errors, and duration.

Each step shows:

• Input payload (resolved templates)
• Output or error message
• Duration in milliseconds
• Status badge (success, failed, skipped)

Click a step to expand the side panel with formatted JSON.

Step types

Uniflect supports 15 flow step types. See the Step types section for detailed documentation on each.

Category	Steps
Core	Trigger, JavaScript
Logic	Condition, For each, Parallel, Subflow
Integration	HTTP, Connector, Email, Database
Utility	Mapping, Delay, Set variable, Log, Spreadsheet to JSON

Guides in this section

• Create your first integration
• Building flows
• Running & debugging
• Step types reference

Template variables

Steps reference data using template syntax:

Path	Meaning
{{trigger.input}}	Payload passed when the flow runs
{{steps.<stepId>}}	Output of a prior step
{{vars.<key>}}	Variable set by a Set variable step
{{parent.steps.<stepId>}}	Parent flow step (inside nested subflows)

Permissions

• MEMBER and above: create, edit, run integrations
• VIEWER: read-only designer (no save or run)

Next steps

• Create your first integration →
• Building flows →
